[Fix] EFI System Partition Appears in Explorer

The EFI system partition, which contains your boot files and boot configuration database, is hidden by default. However, on some systems, the EFI partition may show up with a drive letter in File Explorer.

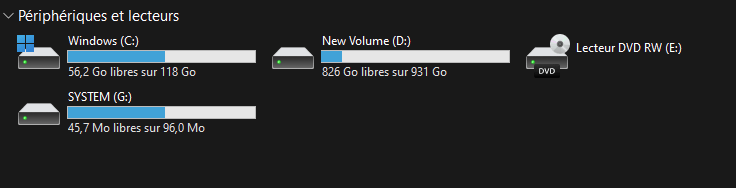

efi system partition drive letter

Even though you remove the drive-letter manually using DiskPart, Windows may automatically assign a drive-letter for the EFI partition at every reboot.

Cause

This happens due to an unwanted registry value under the following registry key:

HKEY_LOCAL_MACHINE\SYSTEM\MountedDevices

The above registry may have a DosDevices entry (i.e., “DosDevices\G:”, where G is your EFI drive letter) for your EFI system partition. This registry value causes the problem.

Resolution

To hide the EFI system partition and prevent the automatic drive letter assignment for the partition, follow these steps:

Method 1: Using Diskpart

Open an admin Command Prompt and run the following commands:

Note: In this example, the EFI partition shows up with the drive letter G:. The following commands are based on that scenario. If the EFI appears with a different drive letter on your computer, replace “G” in the following commands with the correct drive-letter.

diskpart

The above command will start the Diskpart environment.



Run the following commands:

select volume G

remove letter=G

exit

You’re now out of the Diskpart environment.


Method 2: Using the MountVol command

Run these two commands from an admin Command Prompt:

(where G: in this example is the EFI partition. See screenshot at the top of this page.)

mountvol G: /d

mountvol /R

The EFI system partition should no longer show up in Explorer.
