“Delete Volume” Grayed Out for USB Drives in Disk Management

In the Disk Management console, the “Delete Volume” option may be dimmed out in the right-click menu for USB flash drives. So, users may be wondering how to remove one or more partitions in the external USB drives.

Cause

The “Delete Volume” option may be missing if the page file (pagefile.sys) exists in the partition, or the disk contains an Operating System.

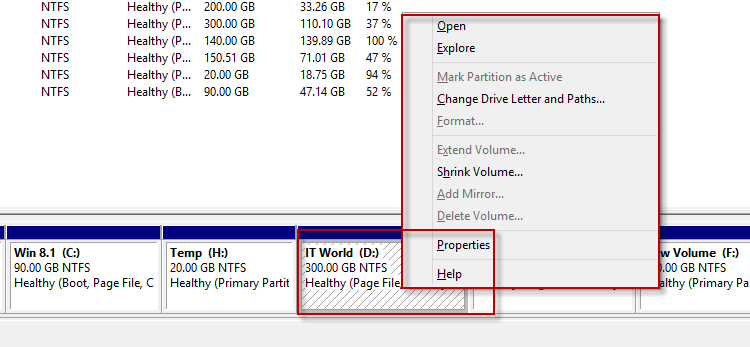

delete volume grayed out for usb drives

If you look at the image above, you can see that a Page File exists in the D: drive — denoted by the line Healthy (Page File). Hence the Delete Volume option is grayed out.

This article explains how to delete the volume on a USB drive if the option is missing in Disk Management.

“Delete Volume” Disabled for USB Drives in Disk Management

1) Disable paging file on the USB drive

Windows allows users to set a page file on external USB hard drives, but not for USB thumb (or flash) drives. To be able to delete a USB drive partition, the first step is to disable the paging file on that drive. To do so, follow these steps:

  1. Right-click Start, click Run.
  2. Type sysdm.cpl and click OK.
  3. Click Advanced
  4. Under Performance, click Settings
  5. Select the Advanced tab, and click Change
  6. Uncheck “Automatically manage paging file size for all drives” if it’s checked.
  7. Select the USB drive from the list (i.e., the drive from which you want to delete a partition)
  8. Select “No paging file,” and click Set
  9. Enable “Automatically manage paging file size for all drives.”.

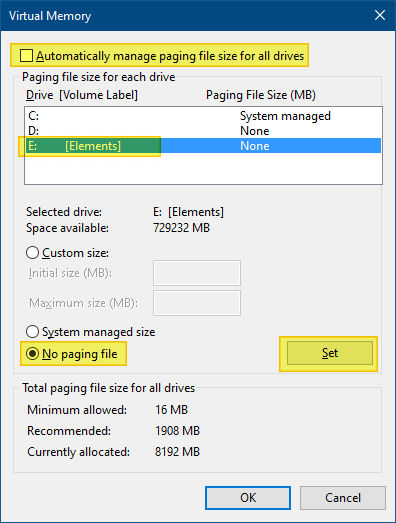

    delete volume grayed out for usb drives - pagefile
    Example: Disabling paging file on external USB hard disk

    (USB flash drives are not listed in the above dialog. External USB hard disks would show up, though. The above dialog shown only for illustration purposes.)

  10. Click OK. You’ll see the message: “The changes you have made require you to restart your computer before they can take effect.
  11. Click OK, OK, to close all the dialog boxes.
  12. Restart Windows.

See if you’re able to delete a partition from your USB drive via Disk Management.


2) Delete Partitions on a USB drive using DiskPart

If you’re still unable to delete the USB drive partition using Disk Management, then you may try the DiskPart command-line tool to accomplish the task.

warning caution iconWarning: DiskPart is only for advanced users. It should be used only if you’re a person who knows what you’re doing. If you’re not confident running diskpart.exe, be sure to have proper drive image backup(s) in place before proceeding.



In this example, we’ll see how to delete one or all partitions on a USB flash drive using DiskPart.

Deleting a single partition

  1. Open an admin Command Prompt window.
  2. Type diskpart and press Enter.
  3. Type list disk. This shows the list of physical disks on the computer.

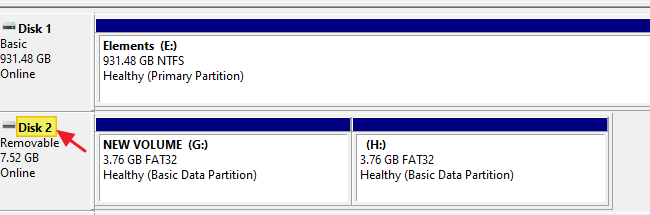

    delete volume grayed out for usb drives - diskpart
  4. Identify the disk # for the subject USB drive — in this case, it’s Disk 2.

    Caution: It’s extremely important that you select the right drive. Selecting the wrong disk can be disastrous! You may want to cross-verify the Disk # and Size via the Disk Management console.

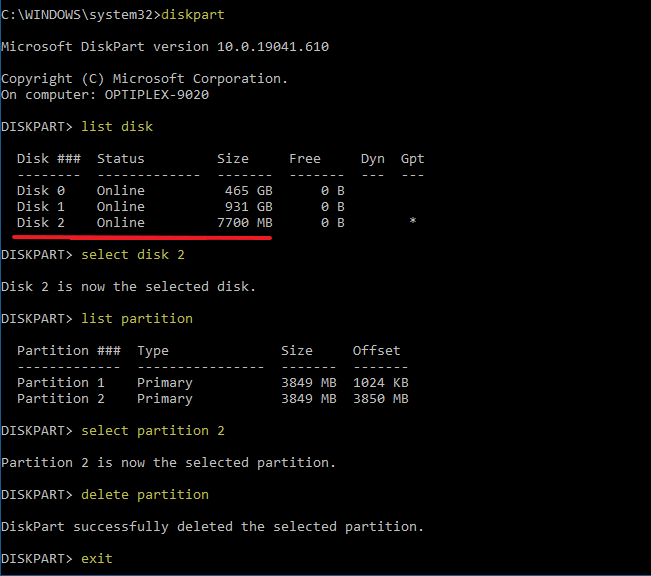

    delete volume grayed out for usb drives - diskpart

  5. Type select disk 2 (in this example, the USB drive is Disk 2) and press Enter.
  6. Type list partition and press Enter.
  7. Let’s say you want to remove the 2nd partition in that disk, type select partition 2, and press Enter.
  8. Type delete partition and press Enter.
  9. Type exit to quit the DiskPart environment.

If you open the Disk Management console now, the deleted partition space will show up as Unallocated.

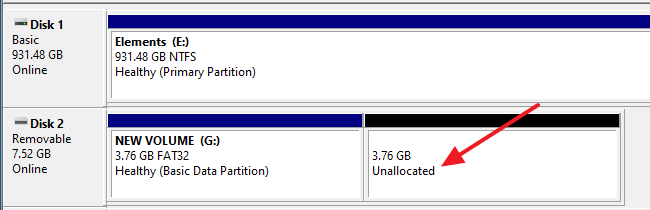

delete volume grayed out for usb drives - diskpart
You may create one or more partitions from that unallocated space. Or, you can merge the entire free space with the other partition on the same disk.

Deleting all partitions

If you want to delete all the partitions using DiskPart, you need to use a different command. Follow these steps:

  1. Open an admin Command Prompt window.
  2. Type diskpart and press Enter.
  3. Type list disk. This shows the list of physical disks on the computer.
    delete volume grayed out for usb drives - diskpart
  4. Identify the disk # for the subject USB drive — in this case, it’s Disk 2.

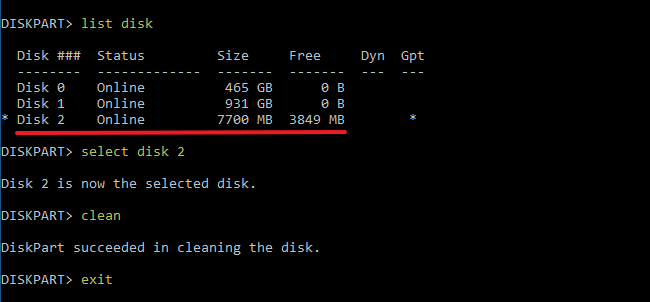

    Caution: It’s extremely important that you select the right drive. Selecting the wrong disk can be disastrous! You may want to cross-verify the Disk # and size via the Disk Management console.delete volume grayed out for usb drives - diskpart

  5. Type select disk 2 (in this example, the USB drive is Disk 2) and press Enter.
  6. Type clean and press Enter. This command deletes all the partitions in the chosen disk #.

    Optional Steps: Create a partition using DiskPart

    You can create a new partition from that unallocated space, format it into NTFS or FAT32 as desired, and let Disk Management assign the next available drive letter automatically.

    Optionally, if you want to create a partition using Disk Part (instead of Disk Management console), you can run these additional commands (4, 5, & 6) while you’re at the DiskPart command environment.

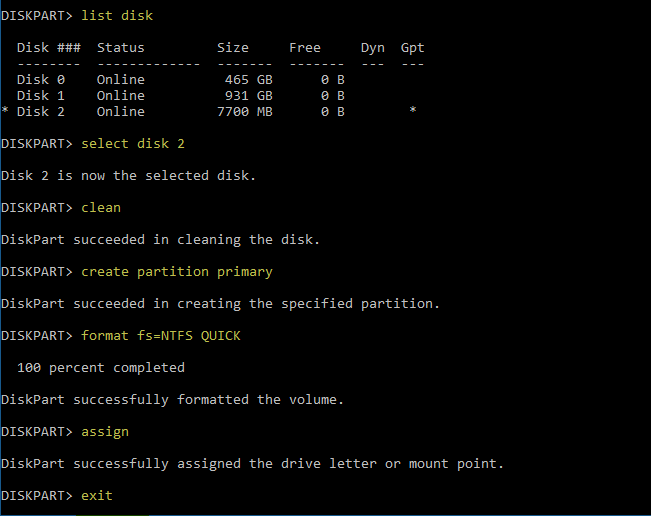

    delete volume grayed out for usb drives - diskpart

    The commands 4-6 will create a single partition, utilizing the entire free space on the disk, format it into NTFS (Quick), and assign the next available drive letter.

    list disk
    select disk 2
    clean
    create partition primary
    format fs=NTFS QUICK
    assign
    exit
  7. Type exit to quit the DiskPart environment.

If you haven’t created a partition already (using DiskPart) or formatted the drive and assigned a drive letter, the entire space in that disk will show up as Unallocated.

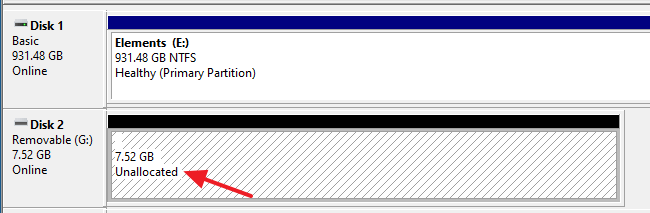

delete volume grayed out for usb drives - diskpart

Using Disk Management, you can create a partition and assign a drive letter as required.
