MSCOMCTL.OCX or dependencies not registered, file is missing

When you attempt to run a program created using Visual Basic 6.0 or Visual FoxPro 6.0 on a Windows 11/10 computer, the following error may occur:

Component 'MSCOMCTL.OCX' or one of its dependencies not registered: a file is missing or invalid

mscomctl.ocx error missing not registered

Let’s see how to fix this error on any version of Windows, including Windows 11.

Fix for Error MSCOMCTL.OCX missing or not registered

Register MSCOMCTL.OCX using RegSvr32.exe

First, check if the file MSCOMCTL.OCX exists in the following folder:

If you’re using Windows 64-bit edition:

C:\Windows\SysWOW64

If you’re using Windows 32-bit edition:

C:\Windows\System32

If MSCOMCTL.OCX exists in the above location, then all you need to do is register the module using regsvr32.exe command.

To register the module, open an administrator Command Prompt window and type the following command:

For Windows 64-bit systems:

regsvr32 C:\Windows\SysWOW64\MSCOMCTL.OCX

For Windows 32-bit systems:

regsvr32 C:\Windows\System32\MSCOMCTL.OCX

You should see the following output/message:

DllRegisterServer in mscomctl.ocx succeeded.

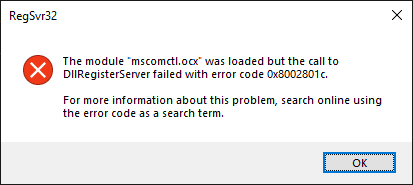

RegSvr32.exe throws the error 0x8002801c?

If the above command-line throws the error 0x8002801c, it means that the command was unable to write to the registry successfully. This happens if you ran the command from a normal Command Prompt instead of the admin or elevated Command Prompt.

The module "mscomctl.ocx" was loaded but the call to DllRegisterServer failed with error code 0x8002801c.

For more information about this problem, search online using the error code as a search term.

0x8002801c - regsvr32 error

To resolve the error 0x8002801c, re-run the command-line from admin Command Prompt.



MSCOMCTL.OCX Missing? Download it now

If MSCOMCTL.OCX is missing from the Windows\System32 or Windows\SysWOW64 directory, you’ll receive the following error when running the RegSvr32.exe command-line:

The module "C:\Windows\SysWOW64\mscomctl.ocx" failed to load.

Make sure the binary is stored at the specified path or debug it to check for problems with the binary or dependent .DLL files.

The specified module could not be found.

In that case, you’ll need to download the module and save it to C:\Windows\System32 (for Windows 32-bit computers) or Windows\SysWOW64 folder (for Windows 64-bit computers).

Download MSCOMCTL.OCX

The most recent version of MSCOMCTL.OCX is v6.01.9846. It’s included in VB60SP6-KB3096896-x86-ENU.msi (Microsoft Visual Basic 6.0 Service Pack 6 Security Rollup Update 1/8/2016) package from Microsoft Corporation. Here’s the download link:

https://www.microsoft.com/en-us/download/details.aspx?id=50722

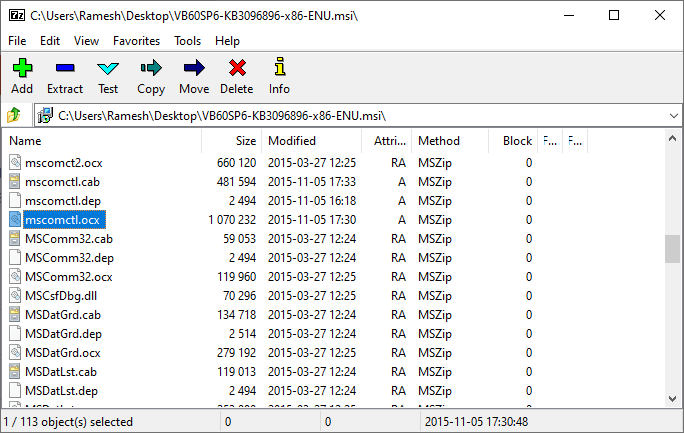

  1. Once downloaded, open the MSI package using the freeware 7-Zip utility.
  2. Extract/copy the module MSCOMCTL.OCX and save it to the Windows\System32 or Windows\SysWOW64 folder.
    mscomctl.ocx error missing not registered - extract using 7-zip
  3. Then register the module using RegSvr32.exe command-line as explained at the top of this article.

MSCOMCTL.OCX – File Information

Filename	: MSCOMCTL.OCX
Verified	: Signed
Publisher	: Microsoft Corporation
Company		: Microsoft Corporation
Description	: Windows Common Controls ActiveX Control DLL
Product		: MSCOMCTL
Prod version	: 6.01.9846
File version	: 6.01.9846
MachineType	: 32-bit
MD5		: 273676426739b02a45a0fc9349500b65
SHA1		: a23c709fae04feef87358abd59504940d0d0c806
SHA256		: 152121a5d1ac8f12002c18afc294bb1ebcecc1d61deec6211df586c11acde9b6

Note that the MSI package contains the following OCX files among many other files inside the archive:

  • ComCt232.ocx
  • ComCt332.ocx
  • comctl32.ocx
  • ComDlg32.ocx
  • dbgrid32.ocx
  • dblist32.ocx
  • mci32.ocx
  • MSAdoDc.ocx
  • MSChrt20.ocx
  • mscomct2.ocx
  • mscomctl.ocx
  • MSComm32.ocx
  • MSDatGrd.ocx
  • MSDatLst.ocx
  • MSDatRep.ocx
  • MSFlxGrd.ocx
  • MShflxgd.ocx
  • MSINET.ocx
  • msmapi32.ocx
  • msmask32.ocx
  • msrdc20.ocx
  • MSWINSCK.ocx
  • PicClp32.ocx
  • richtx32.ocx
  • sysinfo.ocx
  • TabCtl32.ocx
  • wbclsdsr.ocx

What is MSCOMCTL.OCX?

MSCOMCTL.OCX is a 32-bit module used by developers when creating applications using Visual Basic. This module is responsible for showing UI elements such as the image combo control, progress bar, Listview, sliders, toolbar, tree view, etc in the program created using Visual Basic.

vb6 common controls
Screenshot of Visual Basic 6.0 IDE

The MSCOMCTL.OCX module doesn’t ship with Windows, by default. Microsoft has informed that this module will be supported in Windows 11 (and earlier), but it has to be shipped along with the respective software. This means that the module won’t be available via WinBIndex.

For more information, see the section named “Supported runtime files to distribute with your application” in the article Support Statement for Visual Basic 6.0. Even now, there are lots of users who run their old VB apps on Windows 11/10.

I hope this article helped you resolve the MSCOMCTL.OCX error and run your classic VB 6.0 or Visual FoxPro 6.0 apps successfully.

See also: Missing Comdlg32.ocx error while running an application?


One small request: If you liked this post, please share this?

One "tiny" share from you would seriously help a lot with the growth of this blog. Some great suggestions:
  • Pin it!
  • Share it to your favorite blog + Facebook, Reddit
  • Tweet it!
So thank you so much for your support. It won't take more than 10 seconds of your time. The share buttons are right below. :)

Ramesh Srinivasan is passionate about Microsoft technologies and he has been a consecutive ten-time recipient of the Microsoft Most Valuable Professional award in the Windows Shell/Desktop Experience category, from 2003 to 2012. He loves to troubleshoot and write about Windows. Ramesh founded Winhelponline.com in 2005.

3 thoughts on “MSCOMCTL.OCX or dependencies not registered, file is missing”

  1. There is some confusion here!

    You wrote the following (see above):
    “In that case, you’ll need to download the module and save it to C:\Windows\System32 (for Windows 64-bit computers) or Windows\SysWOW64 folder (for Windows 32-bit computers).”

    But that is the opposite of what you wrote earlier, namely that Windows\SysWOW64 folder is for Windows 64-bit computers and Windows\System32 folder is for Windows 32-bit computers.
