When installing an update, especially a Cumulative Update or .NET Framework package in your Windows 10 or 11 computer, the update installation may fail with an error code 0x800F0922
(“CBS_E_INSTALLERS_FAILED
“) or 0xc1900104
or the error message “Something didn’t go as planned”.
In some cases, you may receive the following error:
Something didn't go as planned. Undoing changes.
(or)
Windows couldn't be installed. We couldn't update the system reserved partition.
The update process will continue normally, and during the restart phase, you’ll see the following message:

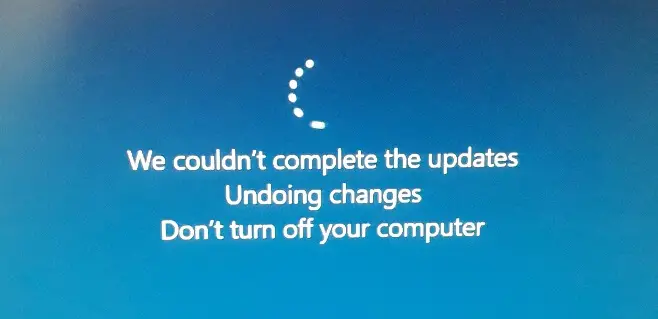

We couldn't complete the updates. Undoing changes. Don't turn off your computer.
The computer would restart three times as if it were going on a restart loop. It’s not a restart loop, actually. During the third reboot, you’ll see the Windows Update files getting cleaned up and the system rolled back to the previous configuration.
Cleaning up
After which, the computer will boot the Welcome screen.

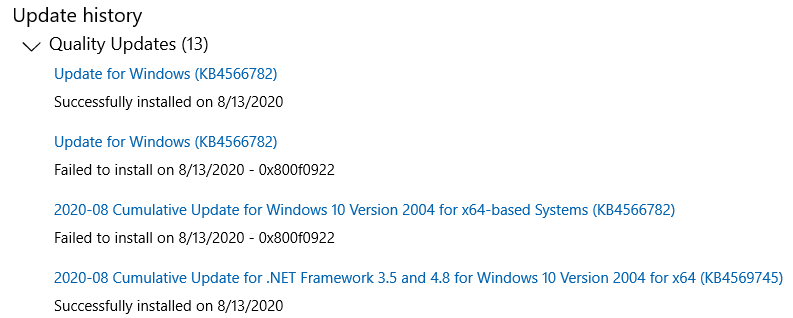

The Windows Update history page would show up the list of failed updates.
The result will be the same if you try downloading the Cumulative Update .msu package from the Microsoft Update Catalog and installing it.
The most common cause for the error 0x800f0922 is the lack of free space in the System Reserved Partition. But that’s not the only reason. For a proper diagnosis, inspect the CBS.log thoroughly.
Now, let’s see how to fix the Windows Update errors 0x800F0922
and We couldn't update the system reserved partition
.
Cause
The Windows Update error 0x800F0922
can occur due to one of the following reasons.
- App Readiness service is disabled.
- The EFI or System Reserved partition has less than 15 MB of free space.
- The EFI boot partition is missing or has a wrong identifier.
- Microsoft Edge has been uninstalled.
- Third-party Antivirus or Malwarebytes Anti-malware blocking the installation.
- Performance counters are damaged.
Fix: Windows Update error 0x800F0922
Step 1: Start the App Readiness service
To fix the error 0x800F0922, enable the App Readiness Service using the following steps:
- Right-click Start, and click Run.
- Type
services.msc
and click OK. - Double-click App Readiness and set its start type to Manual.
- Click OK, and close the Services console.
- Restart Windows.
- Attempt to install the Windows Update(s) now.
Additional note: If App Readiness service is the issue, the CBS log would have the following entries — especially the error “0x80070422” (decimal equivalent is “1058”) (“ERROR_SERVICE_DISABLED”):
Info CSI 00000560 The queue has completed running, and AI failures have occured. Info CSI 00000561 ==Error Summary Start== Error CSI 00000562 (F) Installer: AppX Registration Installer Binary Name: appxreg.dll ErrorCode: 80070422 Phase: 38 Mode: Install (upgrade) Component: Microsoft-Windows-MicrosoftEdge.appxmanifestcustomized, Culture=neutral, PublicKeyToken=31bf3856ad364e35, ProcessorArchitecture=amd64, versionScope=NonSxS[gle=0x80004005] Error CSI 00000563 (F) Installer: AppX Registration Installer Binary Name: appxreg.dll ErrorCode: 80070422 Phase: 38 Mode: Install (upgrade) Component: UserExperience-Desktop, Culture=neutral, PublicKeyToken=31bf3856ad364e35, ProcessorArchitecture=amd64, versionScope=NonSxS[gle=0x80004005] Info CSI 00000564 ==Error Summary End== Error CBS Startup: Failed to process advanced operation queue, startupPhase: 0. A rollback transaction will be created. [HRESULT = 0x800f0922 - CBS_E_INSTALLERS_FAILED] Info CBS Setting ExecuteState key to: CbsExecuteStateInitiateRollback | CbsExecuteStateFlagAdvancedInstallersFailed
or
CSI 000006fe@2023/1/16:15:17:18.460 (F) onecore\base\appmodel\inboxappinstallerai\appxreg.cpp(124): Error HRESULT_FROM_WIN32(1058) originated in function Windows::WCP::AppXRegistration::BasicInstaller::Install expression: RDSAppXOnlineNotifyPackageChanges(APPCHANGETYPE_INBOX) [0x018051] CSI 000006ff (F) Failed execution of queue item Installer: AppX Registration Installer ({f1aab1ba-6ee0-4d94-baeb-c9fd61f365cf}) with HRESULT HRESULT_FROM_WIN32(1058). Failure will be ignored: The failure was encountered during rollback; installer is reliable[gle=0x80004005]
“App Readiness” keeps getting disabled after a restart?
If the App Readiness service gets disabled after every restart, a third-party service may be the culprit. To resolve the issue, disable all third-party services and reboot Windows.

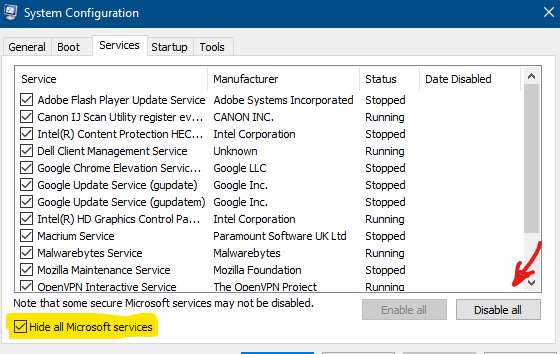

- Launch msconfig.exe
- Select the Services tab.
- Enable “Hide all Microsoft services”
- Click Disable all.
- Reboot the computer.
- Re-enable “App Readiness” and “Storage service” (set them to “Manual”)
- Reboot the computer.
- Check the status of the App Readiness service. Install the cumulative update only if the App Readiness service startup setting is retained (“Manual”).
The above should fix the problem in most cases. If it doesn’t help, proceed to Step 2.
Step 2: Free up disk space in the System Reserved partition
The errors 0x800F0922
and We couldn't update system reserved partition
can occur if the System Reserved Partition (SRP) is full. The System Reserved Partition is a small partition on your hard drive that stores boot information for Windows.
Some third-party anti-virus and security apps write to the SRP and can fill it up. Also, there are many unused font (*.ttf) files inside the SRP that you can remove to free up disk space.
The System Reserved partition doesn’t have a drive letter assigned by default. If you have an MBR partition, you can use Disk Management to assign a drive letter for the System Reserved partition and browse the contents with File Explorer. For GPT disks, you need to use the mountvol
command to assign a drive letter.
Let’s now access the SRP and delete the unused font files from the Boot\Fonts
directory inside SRP.
Find if the disk is MBR or GPT
- Right-click Start, and click Disk Management.
- Right-click on the Disk (such as Disk 0) that contains the System Reserved Partition, and select Properties.
Note that you’ll need to right-click on the Disk # on the left. Instead, if you right-click on the SRP partition itself, you won’t see the Properties option.
- In the Volumes tab, you can determine the Partition Style. It may either be GUID Partition Table (GPT) or Master Boot Record.
Instructions for GPT disk:
- For UEFI/GPT disks, you’ll need to open an admin Command Prompt window and mount the System Reserved partition to a drive letter using
mountvol

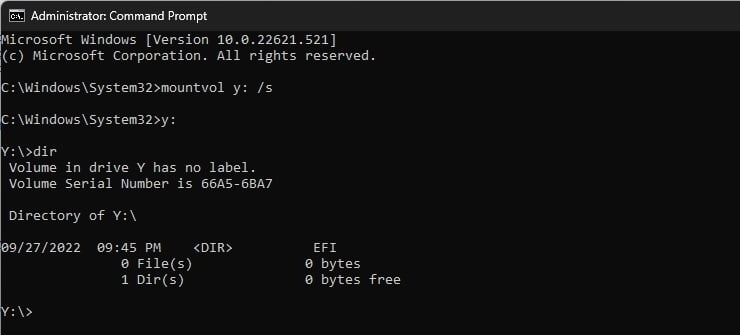

command.mountvol y: /s
The above command mounts the System Reserved partition to Y:\ drive letter. You can’t explore the drive using File Explorer, though.
- Switch to the Y drive by typing the following, and press Enter.
Y:

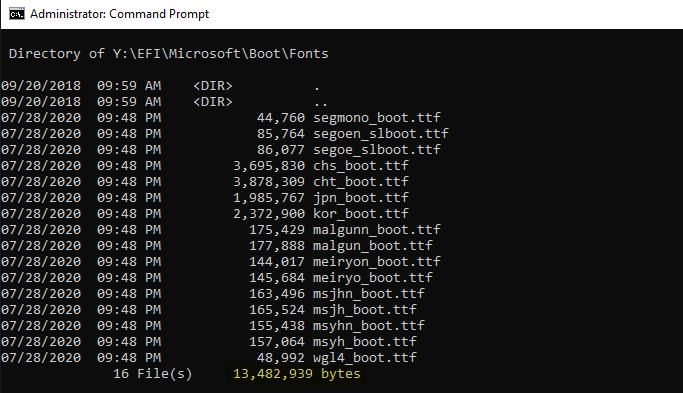

- Then, navigate to the Fonts folder by typing:
cd EFI\Microsoft\Boot\Fonts

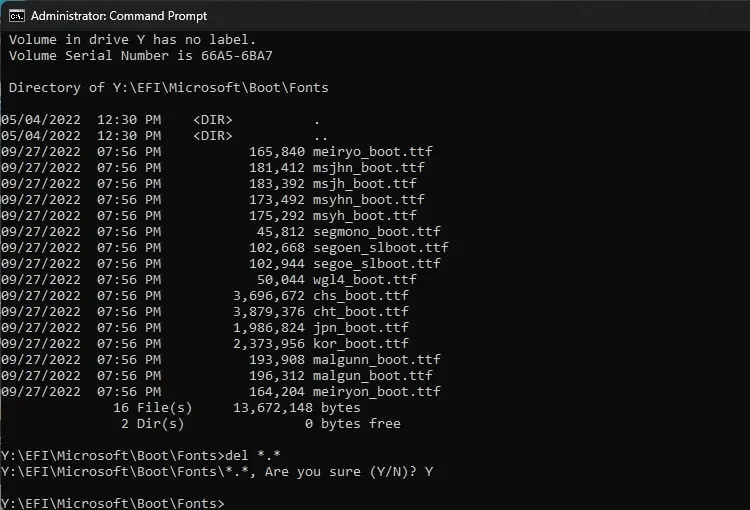

- Once there, type the following to delete font files.
del *.ttf
or
del *.*
(when the system asks you for confirmation, press Y and then Enter to continue.)
The above command deletes all the files from the Fonts folder and frees up disk space to the tune of 13 MB approximately.
Instructions for MBR disk:
- Right-click Start, and click Disk Management.
- Select the partition marked System Reserved.
- Right-click on it and select Change Drive Letter and Paths.
- Choose Add.
- Enter Y for the drive letter.
- Click OK.
- Open a Command Prompt window under
TrustedInstaller
rights. To see how to open Command Prompt under Ti rights, see the article How to Run Programs as TrustedInstaller.Note that the files inside the System Reserved partition are owned by TrustedInstaller. - In the command prompt, type
Y:
and hit enter to switch to that drive. - Then, navigate to the Fonts folder by typing:
cd Boot\Fonts
- Make sure you are located in
Fonts
location (Y:\Boot\Fonts
). Then, type the following command to delete font files.del *.*
(The system would ask you if you are sure to continue, press Y and then Enter to continue.)
- Go back to Disk Management and Refresh the data to confirm if the SRP now has a greater percentage of free space. If so, the drive letter can be removed at this point.
- Right-click the System Reserved Partition.
- Select Change Drive Letter and Paths.
- Choose the
Y:
drive. - Select Remove.
- Click OK.
Additional Information
Other than the font files, some applications may have placed some troubleshooting tools into the System Reserved or EFI partition. Also, Dell BIOS update installers place the BIOS update files in the EFI/System Reserved partition.
It’s advisable to remove those extra files from the EFI/System Reserved partition or move the files somewhere else.
The CBS.log contents are from a system that encountered the error 0x800F0922 when installing the Cumulative Update KB5017389 on a Windows 11 computer. The installation reached 98%, then it encountered a problem and rolled back. At the end, the error 0x800f0922
was displayed. An archived copy of CBS.log
(CbsPersist_nnnnnnnn.log) contained the following events:
Info CSI 00000df5 BFSVC: 'BfspCopyFile(C:\WINDOWS\boot\EFI\fr-CA\bootmgfw.efi.mui, \\?\GLOBALROOT\Device\HarddiskVolume2\EFI\Microsoft\Boot\fr-CA\bootmgfw.efi.mui) failed! (Attempt 1 of 60) Last Error = 0x70' Info CSI 00000df6 BFSVC: 'BfspCopyFile(C:\WINDOWS\boot\EFI\fr-CA\bootmgfw.efi.mui, \\?\GLOBALROOT\Device\HarddiskVolume2\EFI\Microsoft\Boot\fr-CA\bootmgfw.efi.mui) failed! (Attempt 2 of 60) Last Error = 0x70' Info CSI 00000df7 BFSVC: 'BfspCopyFile(C:\WINDOWS\boot\EFI\fr-CA\bootmgfw.efi.mui, \\?\GLOBALROOT\Device\HarddiskVolume2\EFI\Microsoft\Boot\fr-CA\bootmgfw.efi.mui) failed! (Attempt 3 of 60) Last Error = 0x70' Info CSI 00000df8 BFSVC: 'BfspCopyFile(C:\WINDOWS\boot\EFI\fr-CA\bootmgfw.efi.mui, \\?\GLOBALROOT\Device\HarddiskVolume2\EFI\Microsoft\Boot\fr-CA\bootmgfw.efi.mui) failed! (Attempt 4 of 60) Last Error = 0x70' Info CSI 00000df9 BFSVC: 'BfspCopyFile(C:\WINDOWS\boot\EFI\fr-CA\bootmgfw.efi.mui, \\?\GLOBALROOT\Device\HarddiskVolume2\EFI\Microsoft\Boot\fr-CA\bootmgfw.efi.mui) failed! (Attempt 5 of 60) Last Error = 0x70' Info CSI 00000e31 BFSVC: 'Error copying boot files from C:\WINDOWS\boot\EFI to \\?\GLOBALROOT\Device\HarddiskVolume2\EFI\Microsoft\Boot! Last Error = 0x70' Info CSI 00000e32 BFSVC: 'ServicingBootFiles failed. Error = 0x70' Error [0x018049] CSI 00000e36 (F) Failed execution of queue item Installer: Boot File Servicing (BFSVC) Installer ({c5f0e9d7-e844-4507-89e4-701b5a747221}) with HRESULT HRESULT_FROM_WIN32(ERROR_DISK_FULL). Failure will not be ignored: A rollback will be initiated after all the operations in the installer queue are completed; installer is reliable[gle=0x80004005]
From another section of the log:
Error CSI 000014e3 (F) Installer: Boot File Servicing (BFSVC) Installer Binary Name: bfsvc.dll ErrorCode: 80070070 Phase: 31 Mode: Delta Component: NONE[gle=0x80004005] Info CSI 000014e4 ==Error Summary End== Error CBS Startup: Failed to process advanced operation queue, startupPhase: 0. A rollback transaction will be created. [HRESULT = 0x800f0922 - CBS_E_INSTALLERS_FAILED]
It’s evident that the setup encountered the error 0x80070070 (ERROR_DISK_FULL) when copying the .mui files for various locales to the EFI System Reserved Partition. As the System Reserved Partition had 0 bytes of free space, ERROR_DISK_FULL was encountered, and then the error 0x800f0922
.
Deleting the unneeded font files freed up approximately 15 MB of disk space. The issue was immediately resolved as the .mui files use only ~6 MB of space.
However, a permanent solution would be to resize the EFI System Reserved Partition to 200 MB or so.
A Windows user named Martha says:
By adding a drive letter I was able to view contents in File Explorer. In this way, I discovered that at some point in June a computer help person had for some reason stored some backup data files on my System Reserve Partition and so I was able to free up space by moving the data somewhere else. Then I could also remove the drive letter once I was done to avoid confusion.
You should be able to install the Windows Update or .NET Framework update now. If not, proceed to Step 3.
Step 3: Fix the EFI System partition’s Identifier
On UEFI/GPT-based systems, ensure that the EFI partition exists and is identifier is set correctly. If Disk Management shows the EFI partition as the “Data partition”, it may be the root cause for the Windows Update rollback error 0x800F0922
.

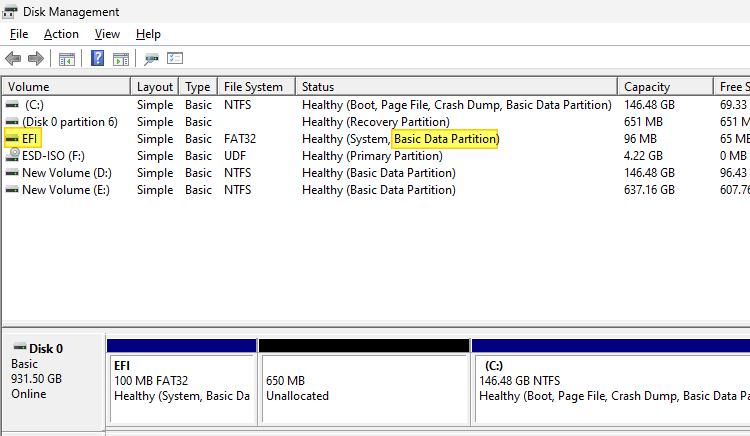

For example, in the following screenshot, the EFI partition shows up as “Basic Data Partition,” and it needs to be fixed.

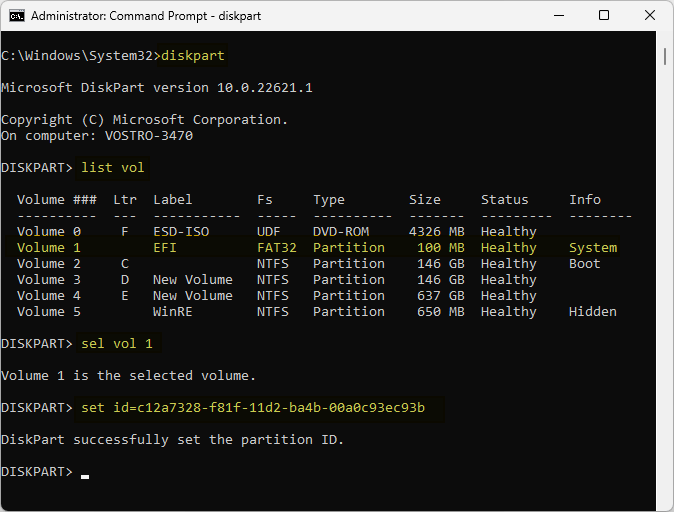

To fix the identifier for the EFI system partition, open admin Command Prompt and run these commands:
diskpart
list volume
Note the volume number for the FAT32 partition, which is your EFI boot partition. The partition size typically ranges from 100 MB to 500 MB.
In this example, the EFI boot partition (FAT32) is “Volume 1”.
So, run the next command:
select volume 1
And then, set the correct identifier by running the following command:
set id=c12a7328-f81f-11d2-ba4b-00a0c93ec93b
You should see the message “DiskPart successfully set the partition ID.” as the output.
Virtual Disk Service error: The device is in use. The selected volume or partition is in use. To continue with the operation use the OVERRIDE parameter.
If closing Disk Management and rerunning the command doesn’t help, run the following command instead:
set id=c12a7328-f81f-11d2-ba4b-00a0c93ec93b override
Type exit to quit the DiskPart environment.
Type exit again to quit the Command Prompt window.

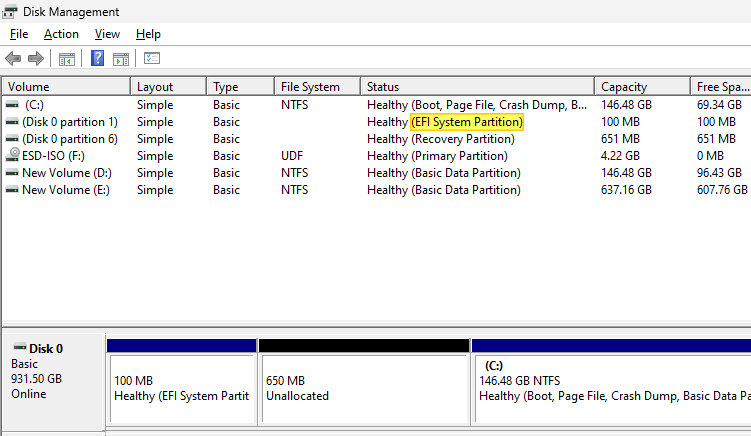

Close Disk Management and re-launch it. It should show the EFI partition as “EFI System Partition” underneath the “Status” column.
See if you can install Windows Updates now.
RELATED: How to Rebuild the EFI Boot Partition, BCD and Boot Files
Additional Info: If the Windows Update rollback is due to the EFI partition issue, the CBS logs may mention the error code 80073bc3 or 0xc0000452.
Error CSI 000011c0 (F) Installer: Boot File Servicing (BFSVC) Installer Binary Name: bfsvc.dll ErrorCode: 80073bc3 Phase: 31 Mode: Delta Component: NONE[gle=0x80004005] Error CBS Startup: Failed to process advanced operation queue, startupPhase: 0. A rollback transaction will be created. [HRESULT = 0x800f0922 - CBS_E_INSTALLERS_FAILED]
Step 4: Reinstall Microsoft Edge (or) Delete the Edge folder
The error 0x800F0922 can occur if Microsoft Edge has been removed from the system. To fix the issue, do one of the following:
a) Reinstall Microsoft Edge. Visit https://www.microsoft.com/en-us/edge/launch/try-edge-cle?form=MA13M0 to download Edge.
(or)
b) If you don’t want to reinstall Edge, delete the “C:\Program Files (x86)\Microsoft\Edge” folder completely (if you’ve earlier uninstalled Edge.)
Step 5: Third-party AV blocking the installation.
If you’re using a third-party antivirus solution, completely uninstall it and install the Windows update.

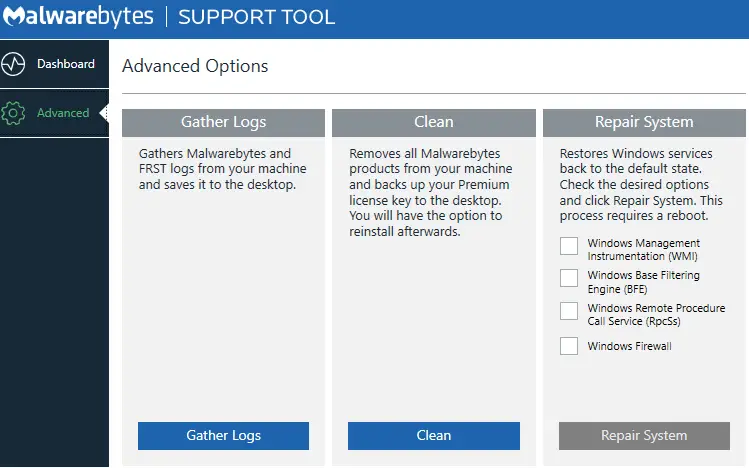

If you have Malwarebytes installed, please uninstall it. Additionally, use the Malwarebytes Support Tool to remove it cleanly.
After a reboot, attempt to install the Windows update(s).
Step 6: Repair/rebuild the rebuilt performance counter setting
This step ought to fix the issue, especially if the CBS log file has one or more entries containing the line PerfCounterInstaller Error: Counter database is corrupted
. Follow these steps to fix the problem.
- Open an admin Command Prompt window.
- Type the following commands and press Enter after each command:
cd c:\windows\system32 lodctr /R cd c:\windows\sysWOW64 lodctr /R
The above commands manually rebuild the Performance Counter Library values stored in the
Perfh009.dat
file, and in thePerfLib
registry key.Note: The parameter
/R
is case-sensitive. If the command was successful, you should see the messageInfo: Successfully rebuilt performance counter setting from system backup store
in the output. - Then, run the following command to resync the counters with WMI:
WINMGMT.EXE /RESYNCPERF
- Exit the Command Prompt window.
Additional Information
Your CBS.log might show something like the following:
Info CSI 00000331 hvhostsvcstats (uninstall): CntrtextUnloadV2Provider() returns 0. Error CSI 00000332 (F) PerfCounterInstaller Error: LastCounter and LastHelp are inconsistent (9380,9847). [gle=0x80004005] Error CSI 00000333 (F) PerfCounterInstaller Error: Counter database is corrupted, run 'lodctr /R' to fix it. [gle=0x80004005] Error CSI 00000334 (F) PerfCounterInstaller Error: PERFLIB V2 CounterSet "{9ff69334-839c-41fe-96e0-c5189ac431f2}" counter number mismatch, initial 9847, current 9848. [gle=0x80004005] Error CSI 00000335 (F) hvhostsvcstats (install): CntrtextLoadV2Provider() returns ERROR_INVALID_DATA. [gle=0x80004005] Info CSI 00000336 CSI Advanced installer perf trace: CSIPERF:AIDONE;{b1498a21-0405-4959-adaa-7e78686acfbe};(null);168505us Info CSI 00000337 End executing advanced installer (sequence 0) Completion status: HRESULT_FROM_WIN32(ERROR_INVALID_DATA) Error [0x018017] CSI 00000338 (F) Failed execution of queue item Installer: Counters Installer ({b1498a21-0405-4959-adaa-7e78686acfbe}) with HRESULT HRESULT_FROM_WIN32(ERROR_INVALID_DATA). Failure will not be ignored: A rollback will be initiated after all the operations in the installer queue are completed; installer is reliable.
CBS.log (Another section)
CBS.log under C:\WINDOWS\Logs\CBS Error CBS Startup: Failed to process advanced operation queue, startupPhase: 0. A rollback transaction will be created. [HRESULT = 0x800f0922 - CBS_E_INSTALLERS_FAILED] Info CBS Setting ExecuteState key to: CbsExecuteStateInitiateRollback | CbsExecuteStateFlagAdvancedInstallersFailed Info CBS SetProgressMessage: progressMessageStage: -1, ExecuteState: CbsExecuteStateInitiateRollback | CbsExecuteStateFlagAdvancedInstallersFailed, SubStage: 0 Info CBS Progress: UI message updated. Operation type: Update. Stage: 1 out of 1. Rollback. Info CBS Setting original failure status: 0x800f0922, last forward execute state: CbsExecuteStateResolvePending
I hope one of the above procedures has helped you install Windows Updates without getting the error 0x800F0922
(“CBS_E_INSTALLERS_FAILED
“).
That’s it!
